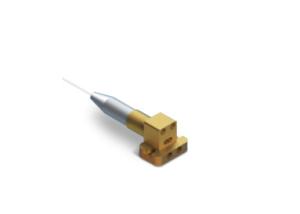

445nm 3.5w Fiber Coupled Diode Laser Biochemical Analysis

Product Categories

BWT Beijing Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : BWT

Model Number : K445H03FN-3.500W

Certification : ISO9001

Place of Origin : China

MOQ : 1 Piece/Pieces

Payment Terms : T/T

Supply Ability : 100,000/year

Delivery Time : 4-8weeks

Product Name : 445nm 3.5W Fiber Coupled Diode Laser

Output Power : 3.5W

Wavelength : 445nm

Fiber bundle diameter : 105µm

Numerical aperture : 0.22NA

Applications : Laser additive reproduction

Contact Now

445nm 3.5w Biochemical Analysis Fiber Coupled Diode Laser

Features:

Applications:

Laser additive reproduction

Specifications(25℃)		Symbol	Unit	K445H03FN-3.500W (Optional Product)
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	Po	W	3.5	3-	-
	Center Wavelength	λc	nm	445±20
	Spectral Width (FWHM)	△λ	nm	-	6	-
	Wavelength Shift with Temperature	△λ/△T	nm/℃	-	0.1	-
Electrical Data	Electrical-to-Optical Efficiency	PE	%		23	-
	Threshold current	lth	A	-	0.3	-
	Operating current	lop	A	-	2.8	3.3
	Operating voltage	Vop	V	-	4.5	5
	Slope Efficiency	η	W/A	-	1.4	-
Fiber Data	Core diameter	Dcore	μm	-	105	-
	Numeric aperture	NA		-	0.22	-
	Minimum Bending Radius	-	mm	45	-	-
Others	End of Life Current	Leof	A			3.5
	End of Life Power	Peol	W	240		-
	ESD	Vesd	V	-	-	500
	Storage temperature	Tst	℃	-20	-	70
	Lead Soldering Temp	Tls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating case temperature	Top	℃	15	-	35
	Relative Humidity	RH	%	15	-	75
